| Technical specifications |
|
| Combustion chamber's type |
closed |
| Nominal heat input, kW |
23.8 |
| Full appliance weight, kg |
29 |
| Boiler efficiency at 100% of load, % |
93.4 |
| Gas consumption at nominal heat output, m3/h |
2.7 |
| D.H.W. flow rate for continuous service (∆T=30 °C), l/min |
11.1 |
| LCD Display |
yes |
| Dimensions (H, W, D) |
756/440/240 |
| Set heating temperature, °C |
35-80 |
| Set sanitary water temperature, °C |
35-55 |
| Central heating circuit max pressure |
10 |
| Power Connection, V/Hz |
230-50 |

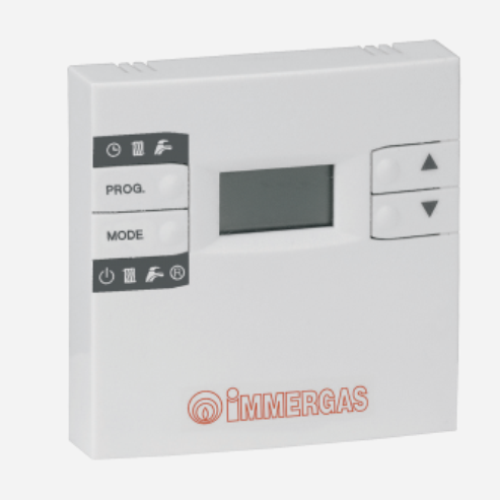

| Room thermostat 3.012287 |
* |

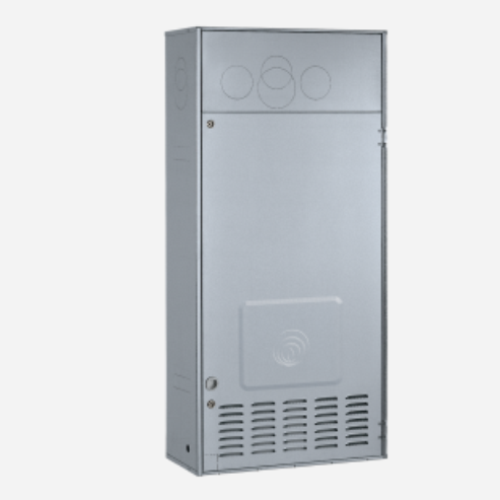

Traditional boiler with 23.8 kW nominal heat input and closed combustion chamber
